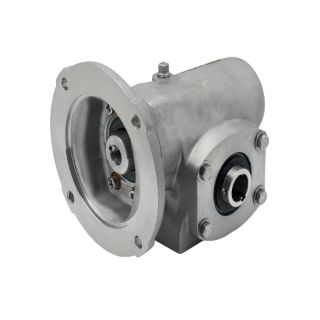

SS17Q20H56 DOD

Name: SS17Q20H56 DOD
Brand: Dodge
SKU: SS17Q20H56 DOD
Price: 2,246.40 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Dodge

Manufacturer part number:

SS17Q20H56

product.name:

SS17Q20H56 DOD

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$2,246.40 / EA

Description

Specifications

Base to Output Center Height:	1.9900
Base to Output Center Height (Unit):	INCH
Bore Diameter (Output):	1.0000
Bore Diameter (Output) (Unit):	INCH
Bore Length:	5.4100
Bore Length (Unit):	INCH
Case Size:	17
Center Distance:	1.7500
Center Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	1.0300
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.8400
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Stainless Steel
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:	4.1900
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	2.7500
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	20.0000
Output Shaft Center to Input Motor Mounting Face Distance:	4.9200
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Hollow
Overhung Load:	1190
Overhung Load (Unit):	POUND_FORCE
Rated Torque Output:	602
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Two-Piece Harsh Duty
Suitable For Washdown:	Yes
Thermal Horsepower Rating:	1.5800
Thermal Horsepower Rating (Unit):	HORSEPOWER

Resources

Tech Bulletin Engineering Drawing Installation

Customers who bought this item also bought

VFSWDM3542-E BLD

MFG#:

Info:.75HP,1760RPM,3PH,60HZ,56C,3522M,TENV,F1

$ -.--

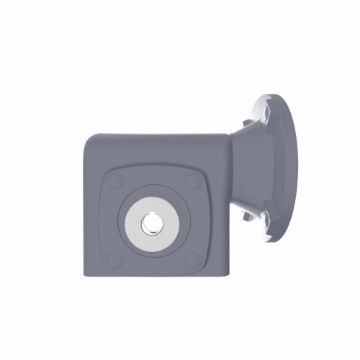

SSHF71820KB5HSP16 BOS
