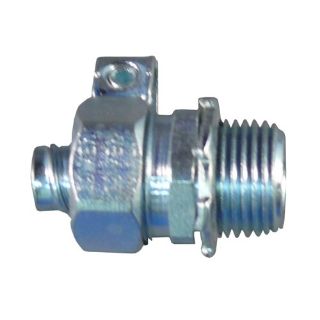

ST75L APN

Name: ST75L APN
Brand: Appleton
SKU: ST75L APN
Price: 16.29 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

ST-75L

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$16.29 / EA

Description

Brand Name

Appleton®

Type

Non-Insulated Straight

Description

Appleton® offers a full range of Class I Division 2 Liquidtight connectors ideally suited for OEM equipment, as well as harsh and corrosive environments. With only three main parts the body, long-throat crimpable ferrule and compression nut Appleton® ST connectors are, at minimum, 25% quicker to install than the competitor's. In addition, the breadth of Appleton® ST Liquidtight product line offers a vast range of trade sizes, configurations, and male and female versions in both aluminum and steel. For all these reasons, Appleton® is the top choice whenever a secure, safe connection is paramount.

Appleton® Liquid Tight Conduit Connector, Non-Insulated Straight, Series: ST Series, 3/4 in Trade, For Use With: Liquid Tight Flexible Metal Conduit Fitting, Steel, Electroplated Zinc, 1-1/2 in L x 1-1/2 in W Dimensions

Application

For use with liquid tight flexible metal conduit where an external, visible equipment bonding jumper is desired

Standards

UL 514B, E14814 Listed | CSA C22.2 No. 18.3, 065178 Certified | NEMA FB-1 Approved | ARRA Compliant

Features

Malleable iron and/or steel construction, steel or aluminum ferrule, polypropylene sealing ring
Unique long ferrule with pronounced threads provides over four times UL pull out requirements
Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection
Liquidtight, raintight and oiltight
Suitable for outdoor use
Full, machined tapered threads (npt)
Straight, 45 and 90 deg styles available in trade sizes 3/8 through 4 in
Machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and other applications that require flexibility and protection against entry of liquids, vapors or solids
ST-L Series has plain throat, STB-L Series has insulated throat to protect against wire damage
Suitable for use in hazardous locations Class I, Division 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2, NEC 501-4(b), 502-4(a)(2), 503-3(a)
0.63 in L thread

Specifications

Country of Origin:	MX
Dimensions:	1-1/2 in L x 1-1/2 in W
Finish:	Electroplated Zinc
Material:	Steel
Series:	ST Series
Suitable For Use With:	Liquid Tight Flexible Metal Conduit Fitting
Trade Size:	3/4 in
