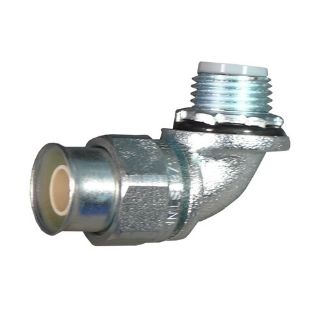

Actual Product May Vary From Image

STNM9050 APN

Name: STNM9050 APN
Brand: Appleton
SKU: STNM9050 APN
Price: 31.72 USD
Availability: InStock

Appleton® STNM-9050 Conduit Connector With Insulated Throat, 1/2 in Trade, 90 deg, Steel

Manufacturer: Appleton

Manufacturer part number: STNM-9050

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	28	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$31.72

Qty:

Product Details

Appleton®

Appleton® Conduit Connector, Series: STNM, 1/2 in, 90 deg, For Use With: Type A Flexible Non-Metallic Conduit, Steel, 2-3/8 in L x 1-5/16 in H

Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation

UL 514B | UL File No. E14814 | CSA C22.2 No. 18 | CSA 065178 | Class I, Div 2

Eliminates common connection problems and assures a liquidtight seal against oil, water, dirt and chemicals
The positive, pull out proof seal formed by a STNM connector begins with its deep threaded ferrule that bites into the inner wall of the conduit
The sleeve separates the STNM series apart from ordinary connectors
The sleeve is held captive within a compression nut that allows it to move freely and self align with the conduit having a slightly irregular surface or varying wall thickness
The nut rides only on the sleeve and not on the conduit
It cannot bend or twist the conduit and thereby protects wiring
When fully tightened, the flared sleeve extends beyond the nut, providing additional protection from flexing
Ease of assembly and disassembly of STNM connectors permits make up of harnesses in advance for fast, simple connections during production line assemblies

Locknut and Neoprene O-Ring

Angle:	90 deg
Country of Origin:	MX
Dimensions:	2-3/8 in L x 1-5/16 in H
Material:	Steel
Series:	STNM
Suitable For Use With:	Type A Flexible Non-Metallic Conduit
Trade Size:	1/2 in
