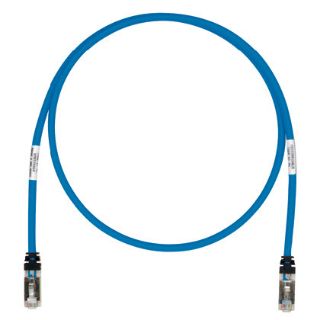

Picture of STP6X15BU PAN
Actual Product May Vary From Image

STP6X15BU PAN

Panduit® PanNet® TX6A™ 10Gig™ STP6X15BU S/FTP Shielded Patch Cord, Cat 6a, 26 AWG Stranded Copper Conductor, RJ45 Modular Plug Connector, 15 ft L Cord
Manufacturer: Panduit
Manufacturer part number: STP6X15BU
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 2 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$43.56

Product Details

Brand Name

Panduit®

Type

S/FTP Shielded

Description

Category 6A/class EA, S/FTP patch cords shall be constructed of 26 AWG shielded twisted pair stranded copper cable with an enhanced performance shielded modular plug at each end. Patch cord cable shall be offered in multiple colored S/FTP cable for design flexibility with a black strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit® PanNet® TX6A™ 10Gig™ Patch Cord, S/FTP Shielded, Series: STP6X, Category: Cat 6a, 26 AWG Conductor, Stranded Copper Conductor, RJ45 Modular Plug Connector, 15 ft Cord Length, Blue Jacket, 14 to 140 deg F

Application

Stacking Switched and Switch-to-Switch Links, Aggregation of Gigabit Ethernet Channels, Streaming Video, Scientific Modeling, Storage Area Networks, Real-Time Intensive Financial Transactions, Animation and Medical Imaging Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ANSI/TIA-568-C.2 | ANSI/TIA-1096-A | ISO 11801 Class EA | IEEE 802.3an-2006 | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt Type 3 and Type 4 for PoE Compliance | UL 1863 | IEC 60603-7 | IEC 60332-1 | IEC 60754-1 | IEC 61034-2 | CE Marked | CM/LSZH Dual-Rated Flammability Rating

Features

  • 100% performance tested for wire map, NEXT and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Flexible stranded cable
  • Provides identification of performance level, length and quality control number for future traceability
  • Robust construction

Specifications

Category Type:Cat 6a
Conductor Size:26 AWG
Conductor Type:Stranded Copper
Connector Type:Modular Plug
Cord Length:15 ft
Jacket Color:Blue
Series:STP6X
Temperature Rating:14 to 140 deg F
