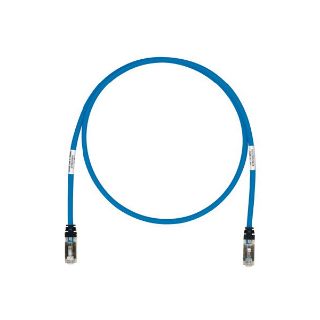

Actual Product May Vary From Image

STP6X1BU PAN

Name: STP6X1BU PAN
Brand: Panduit
SKU: STP6X1BU PAN
Availability: InStock

Panduit® STP6X1BU Shielded Patch Cord, Cat 6a, 26 AWG 4-Pair S/FTP Stranded Copper Conductor, 8-Position TX6A™ 10Gig™ Modular Plug Connector, 1 ft L Cord, Blue Cable/Black Boot

Manufacturer: Panduit

Manufacturer part number: STP6X1BU

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	12	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

Shielded

Description

Category 6A/Class EA, S/FTP patch cords shall be constructed of 26 AWG shielded twisted pair stranded copper cable with an enhanced performance shielded modular plug at each end. Patch cord cable shall be offered in multiple colored S/FTP cable for design flexibility with a black strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

Panduit® Patch Cord, Shielded, Category: Cat 6a, 26 AWG Conductor, 4-Pair S/FTP Stranded Copper Conductor, 8-Position TX6A™ 10Gig™ Modular Plug Connector, 1 ft Cord Length, Blue Cable/Black Boot, 14 to 140 deg F

Application

Stacking Switched and Switch-To-Switch Links, Aggregation of Gigabit Ethernet Channels, Streaming Video, Scientific Modeling, Storage Area Networks, Real-Time Intensive Financial Transactions, Animation and Medical Imaging

Standards

RoHS Compliant | CE Compliant | ISO 11801 Class E | FCC and ANSI | IEC 60603-7 | IEC 60332-1 | IEC 60754-1 | IEC 61034-2 | UL 1863

Features

100% performance tested for wire map, next and return loss
Centered de-embedded plug performs in center of ANSI/TIA-568-C.2 component range, ensuring interoperability and optimum performance
Integral pair manager optimizes performance and consistency by reducing untwist at plug
Patented tangle free latch prevents snags and provides easy release, saving time on frequent moves, adds and changes
Slender strain relief boot provides easy access in high density applications
Provides identification of performance level, length and quality control number for future traceability
Rated to 2500 mating cycles
10 Gb/s patch cord
Aluminum cable shield
Plated cartridge brass plug shield
-40 to 70 deg C storage temperature
Polycarbonate plug
CM/LSZH dual rated flammability
0.24 in nominal outer diameter cable
TPE boot

Specifications

Category Type:	Cat 6a
Color:	Blue Cable/Black Boot
Conductor Size:	26 AWG
Conductor Type:	4-Pair S/FTP Stranded Copper
Connector Type:	8-Position TX6A™ 10Gig™ Modular Plug
Cord Length:	1 ft
Temperature Rating:	14 to 140 deg F
