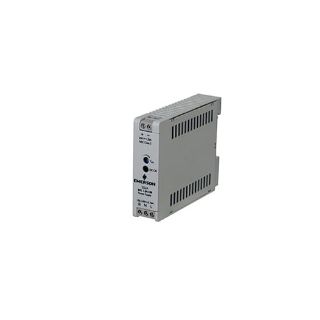

Actual Product May Vary From Image

SVL124100 SHD

Name: SVL124100 SHD
Brand: SolaHD (Emerson)
SKU: SVL124100 SHD
Price: 44.56 USD
Availability: OutOfStock

30W 24V DIN PS 85-264VAC

Manufacturer: SolaHD (Emerson)

Manufacturer part number: SVL124100

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

$44.56

Qty:

Product Details

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 1.25A, Max. Power: 30W, Frequency Rating: 50/60Hz, Single Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme, NEC Class 2

Features

Universal Input; Convection cooling; DC OK LED; NEC Class 2 output; Protection: short circuit, over voltage, overload, over temperature; Two year warranty

Specifications

Amperage Rating:	1.25 A
Cable Size:	Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors
Country of Origin:	TH
Efficiency:	88 % typ
Enclosure:	To be installed in an enclosure
Environmental Conditions:	To be installed in a controlled environment
Frequency Rating:	50/60 Hz
Fuse Rating:	Internally Fused
Height:	2.95 in
Length:	3.52 in
Material:	Plastic
Mounting:	DIN Rail
Phase:	Single
Voltage Rating:	24 VDC
Wattage:	30 W
Width:	0.82 in

Resources

Spec Sheet
