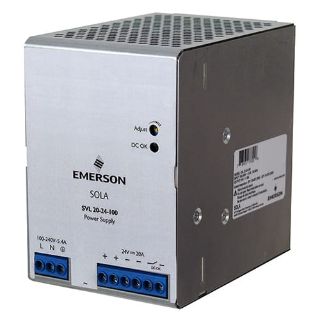

Actual Product May Vary From Image

SVL2024100 SHD

Name: SVL2024100 SHD
Brand: SolaHD (Emerson)
SKU: SVL2024100 SHD
Price: 197.17 USD
Availability: OutOfStock

480W 24V DIN PS 85-264VAC

Manufacturer: SolaHD (Emerson)

Manufacturer part number: SVL2024100

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$197.17

Qty:

Product Details

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 20A, Max. Power: 480W, Frequency Rating: 50/69Hz, Single Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme

Features

Universal Input; Convection cooling; DC OK LED; DC OK Relay; Protection: short circuit, over voltage, overload, over temperature; Two year warranty

Specifications

Amperage Rating:	20 A
Cable Size:	Input Connector size range: 16-12 AWG (1.5-3.3 mm2) for solid conductors; Output Connector size range: 16-12 AWG (1.5-3.3 mm2) for solid conductors
Control:	DC OK Relay
Country of Origin:	TH
Efficiency:	88 % typ
Enclosure:	To be installed in an enclosure
Environmental Conditions:	To be installed in a controlled environment
Frequency Rating:	50/60 Hz
Fuse Rating:	Internally Fused
Height:	4.87 in
Length:	5.06 in
Material:	Metal
Mounting:	DIN Rail
Phase:	Single
Voltage Rating:	24 VDC
Wattage:	480 W
Width:	3.37 in

Resources

Spec Sheet
