SVL248100 SHD

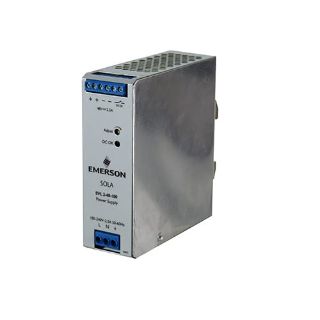

Picture of SVL248100 SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
SVL248100
product.name:
SVL248100 SHD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$79.53 / EA

Description

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 48VDC, Nominal Output Current: 2.5A, Max. Power: 120W, Frequency Rating: 50/66Hz, Single Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme

Features

Universal Input; Convection cooling; DC OK LED; DC OK Relay; Protection: short circuit, over voltage, overload, over temperature; Two year warranty

Specifications

Amperage Rating:2.5 A
Cable Size:Input Connector size range: 18-8 AWG (0.823-8.365 mm2) for solid conductors; Output Connector size range: 24-12 AWG (0.20-3.3 mm2) for solid conductors
Control:DC OK Relay
Country of Origin:TH
Efficiency:88 % typ
Enclosure:To be installed in an enclosure
Environmental Conditions:To be installed in a controlled environment
Frequency Rating:50/60 Hz
Fuse Rating:Internally Fused
Height:4.84 in
Length:4.63 in
Material:Metal
Mounting:DIN Rail
Phase:Single
Voltage Rating:48 VDC
Wattage:120 W
Width:1.57 in
