SVL412100 SHD

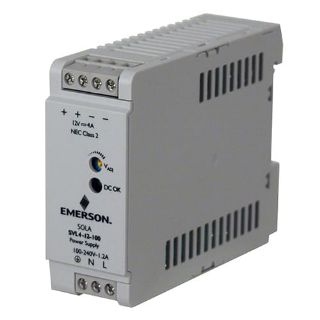

Picture of SVL412100 SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
SVL412100
product.name:
SVL412100 SHD
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$67.59 / EA

Description

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 12VDC, Nominal Output Current: 4A, Max. Power: 48W, Frequency Rating: 50/63Hz, Single Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme, NEC Class 2

Features

Universal Input; Convection cooling; DC OK LED; NEC Class 2 output; Protection: short circuit, over voltage, overload, over temperature; Two year warranty

Specifications

Amperage Rating:4 A
Cable Size:Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors
Country of Origin:TH
Efficiency:88 % typ
Enclosure:To be installed in an enclosure
Environmental Conditions:To be installed in a controlled environment
Frequency Rating:50/60 Hz
Fuse Rating:Internally Fused
Height:2.95 in
Length:3.52 in
Material:Plastic
Mounting:DIN Rail
Phase:Single
Voltage Rating:12 VDC
Wattage:48 W
Width:1.18 in

Resources

Spec Sheet
