T17 CRH

Name: T17 CRH
Brand: CROUSE-HINDS (INDUSTRIAL)
SKU: T17 CRH
Price: 27.70 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

CROUSE-HINDS (INDUSTRIAL)

Manufacturer part number:

T17

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$27.70 / EA

Description

Brand Name

Crouse-Hinds

Type

Type T

Description

Eaton Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find Eaton products at the center of operations.

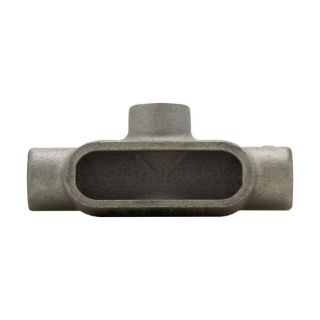

Crouse-Hinds Condulet® Conduit Outlet Body, Type T, 1/2 in Hub, 3 Hubs, 5.8 cu-in Capacity, 7 Form, Thread Connection, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted, 5-5/8 in L x 2-7/16 in W x 1-3/4 in H Dimensions

Application

For providing openings for making splices and taps in conductors and connecting conduit sections, rigid conduit, commercial, institutional buildings, structures commercial and other applications

Standards

CSA C22.2 File No. 18 | Federal/SPecification W-C-586D | UL File No. 514B

Features

Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installation
Stainless steel cover screw
Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
Form 7 has exclusive Snaptight™ and wedge nut cover attachment to provide clear, unobstructed cover opening
Wedge nut design facilitates installation and removal
Nuts are held captive in cover, covers can be used with or without gaskets
Form 7 covers with integral sealing gaskets are installed without the use of screws, reducing installation time and costs
Act as pull outlets for conductor being installed
Provides openings for making splices and taps in conductor
Connect conduit sections
Makes 90 deg bends in conduit run
Provides taps for branch conduit run
Provides for access to conductor for maintenance and future system changes

Specifications

Capacity:	5.8 cu-in
Connection Type:	Thread
Country of Origin:	US
Dimensions:	5-5/8 in L x 2-7/16 in W x 1-3/4 in H
Finish:	Aluminum Acrylic Painted/Electro-Galvanized
Form:	7
Hub Size:	1/2 in
Material:	Feraloy Iron Alloy
Number of Hubs:	3
