T253012S ACM

Name: T253012S ACM
Brand: Acme Electric
SKU: T253012S ACM
Availability: OutOfStock

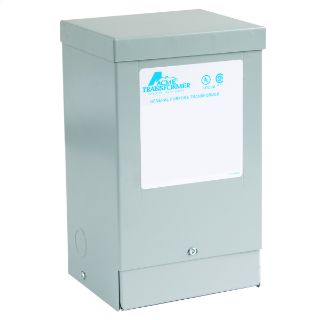

Actual Product May Vary From Image

Product Details

Manufacturer:

Acme Electric

Manufacturer part number:

T253012S

Availability:

3 in stock

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Acme Electric®

Type

Air Colled/Dry

Description

Acme's low voltage distribution transformers are designed for industrial and commercial applications. All of Acme's general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Acme Electric® Distribution Transformer, Air Colled/Dry, 240/480 VAC Primary, 120/240 VAC Secondary, 2 kVA, 60 Hz, 1 ph, Wire Lead, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, 5.13 in L x 5.5 in W x 13 in H

Standards

UL 506 | E79947V1 | 50B8 | X3221 | CSA Certified | OSHA Approved | ANSI Specified | IEEE | PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Features

Encapsulated core and coil
Shielded for cleaner power
Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and coil to seal out all moisture and air
Quiet operation with sound levels well below NEMA standards
Steel enclosure
Air cooled/dry cooling
Two winding primary, two winding secondary configuration
Aluminum winding
Epoxy encapsulated

Specifications

Connection Type:	Wire Lead
Country of Origin:	MX
Dimensions:	5.13 in L x 5.5 in W x 13 in H
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Insulation:	Class H/180 deg C
Mounting Type:	Wall
Phase:	1 ph
Power Rating:	2 kVA
Primary Voltage:	240/480 VAC
Secondary Voltage:	120/240 VAC
Temperature Rating:	115 deg C
