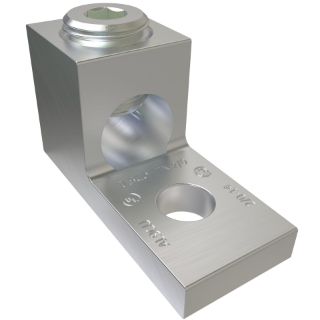

Actual Product May Vary From Image

TA-2/0 ILS

Name: TA-2/0 ILS
Brand: Ilsco
SKU: TA-2/0 ILS
Price: 2.57 USD
Availability: InStock

ILSCO® ClearChoice® TA-2/0 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 2/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy

Manufacturer: Ilsco

Manufacturer part number: TA-2/0

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
18	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$2.57

Qty:

Product Details

Brand Name

ILSCO®

Type

1-Conductor Dual Rated

Description

ILSCO® ClearChoice® Mechanical Terminal Lug, 1-Conductor Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 14 to 2/0 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.843 in L x 0.625 in W x 0.187 in THK Tongue, Straight Tongue, 2000 VAC, 3/16 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 1.4688 in L x 0.625 in W x 0.794 in H

Application

Terminating Connector Applications

Standards

CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99

Features

Manufactured from high strength 6061-T6 aluminum alloy
Chamfered wire entry provides ease of installation
Provides low contact resistance
Ensures reliability for copper or aluminum conductors
1-stud
Suitable for use with either copper or aluminum conductors

Specifications

Conductor Size:	14 to 2/0 AWG
Conductor Type:	Aluminum/Copper
Country of Origin:	MX
Dimensions:	1.4688 in L x 0.625 in W x 0.794 in H
Finish:	Electro-Plated Tin
Material:	6061-T6 Aluminum Alloy
Number of Bolt Holes:	1
Series:	TA Series
Specifications:	3/16 in Hex
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.843 in L x 0.625 in W x 0.187 in THK
Tongue Type:	Straight
Voltage Rating:	2000 VAC
