Actual Product May Vary From Image

TC502 NER

Name: TC502 NER
Brand: Appleton
SKU: TC502 NER
Price: 1.31 USD
Availability: InStock

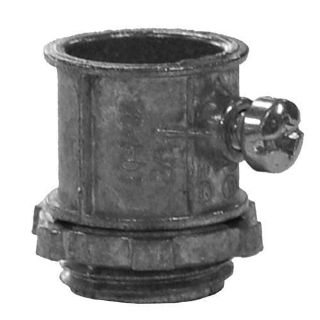

Appleton® NEER™ TC-502 TC-500 Non-Insulated Straight Set Screw Connector With Locknut, 3/4 in Trade, For Use With EMT Conduit, Die Cast Zinc, Natural

Manufacturer: Appleton

Manufacturer part number: TC-502

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	212
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.31

Qty:

Product Details

Brand Name

Appleton®

Type

Non-Insulated Straight

Description

Appleton® offer NEER™ zinc set screw connectors and couplings. TC-500 couplings are used to join lengths of steel EMT for concretetight or dry location applications. TC-500 connectors are used to secure and terminate steel EMT to knockouts in concretetight or dry location applications.

Appleton® NEER™ Set Screw Connector, Non-Insulated Straight, Series: TC-500, 3/4 in Trade, 1.29 in Diameter, For Use With: EMT Conduit, Die Cast Zinc, Metallic, Natural Finish, 1.41 in L Dimensions

Application

For securing and terminating steel EMT to knockouts in concretetight box or dry locations applications

Standards

CSA 208044 | CSA C22.2 No. 18.3 | NEMA FB-1 | UL 514B File No. E35001

Features

Male hub NPS thread connection
Concrete tight when tapped
Pre-set/pre-staked set screws
Combination head set screws

Specifications

Color:	Metallic
Country of Origin:	IN
Diameter:	1.29 in
Dimensions:	1.41 in L
Finish:	Natural
Material:	Die Cast Zinc
Series:	TC-500
Suitable For Use With:	EMT Conduit
Trade Size:	3/4 in
