Home / TCFH30N BSF

TCFH30N BSF

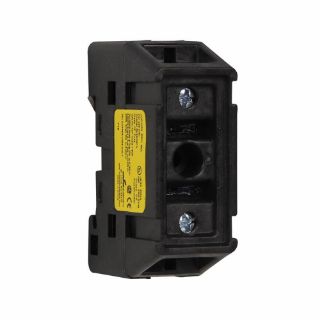

Picture of TCFH30N BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
TCFH30N
CBT Inventory
8
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
8
CBT - LEXINGTON
0
Availability:
Expected Leadtime 38 days
Estimated dates are contingent upon manufacturer stock.
$35.80 / EA

Description

Brand Name

Bussmann

Type

Finger Safe Non-Indicating

Alternate Supplier #

Grainger - 5CFK0

Description

The Bussmann series CUBEFuse™ holder is a finger safe modular system of 1-pole 30, 60 and 100 A holders. All holders are capable of being dovetailed together to create the desired number of poles for the application, including mixed amp ratings. The CUBEFuse™ holder is available in two versions: the 600 VAC UL listed holders that utilize either the time delay (TCF) or fast acting (FCF) CUBEFuse™ and the 690 V UL Recognized version that utilizes the fast acting wind CUBEFuse™ (WCF).
Bussmann CUBEFuse™ Fuse Holder, Finger Safe Non-Indicating, Series: TCFH, 600 VAC/300 VDC, 30 A, 1 Pole, Class: CF, Pressure Plate, 18 to 8 AWG Wire, Chassis/DIN Rail Mount, -40 to 176 deg F, For Use With: CUBE Fuse™ CF and J and Low-Peak™ Fuse, Glass Filled Polyethersulfone, Gray, 2.3 in L x 0.76 in W x 1.357 in H

Application

Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger Safe System Applications, Safety and Security Systems

Standards

CE Certified | CSA 6225-01 | CSA File No. 47235 | cULus Listed | IEC 60529 | RoHS Compliant | UL File No. E14853

Features

  • Finger safe construction for enhanced electrical safety
  • 30, 60 and 100 A ratings help prevent over fusing by rejecting higher fuse amperage ratings
  • Smallest fuse and holder footprint of any class fuse installation including class J, CC, T and RK
  • 35 mm DIN rail or panel mount for flexible installation
  • All holders dovetail together to easily achieve the required number of poles
  • Dual wire rated terminals for wiring ease

Specifications

Amperage Rating:30 A
Class:CF
Color:Gray
Connection Type:Pressure Plate
Country of Origin:CN
Dimensions:2.3 in L x 0.76 in W x 1.357 in H
Material:Glass Filled Polyethersulfone
Mounting Type:Chassis/DIN Rail
Number of Poles:1
Series:TCFH
Suitable For Use With:CUBE Fuse™ CF and J and Low-Peak™ Fuse
Temperature Rating:-40 to 176 deg F
Voltage Rating:600 VAC/300 VDC
Wire Size:14 to 8 AWG, 18 to 10 AWG
