Actual Product May Vary From Image

TP420L050 GAT

Name: TP420L050 GAT
Brand: Gates Rubber
SKU: TP420L050 GAT
Price: 73.86 USD
Availability: OutOfStock

Gates® PowerGrip® Twin Power® TP420L050 Light Timing Belt, 1/2 in W, 42 in OAL, 3/8 in Pitch, 112 Teeth, Neoprene

Manufacturer: Gates Rubber

Manufacturer part number: TP420L050

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$73.86

Qty:

Product Details

Brand Name

Gates®

Type

Light

Description

PowerGrip™ Twin Power™ Timing Belts are suitable for all industrial serpentine applications that require rotation reversal in some driven shafts. Twin Power belts have precision-formed elastomeric teeth on both sides to provide high-loading capacity synchronization from both driving surfaces. Due to its double and directly opposite teeth, Twin Power synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility. Gates PowerGrip Twin Power belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity.

Gates® PowerGrip® Twin Power® Timing Belt, Light, Series: 9246, 112 Teeth, 3/8 in Pitch, 42 in Overall Length, 1/2 in Width, 2.83 in Minimum Pulley Dia, -30 to 180 deg F, Neoprene, Fiberglass Reinforced Material

Application

For all industrial serpentine applications requiring rotation reversal in some driven shafts

Standards

RMA Standard

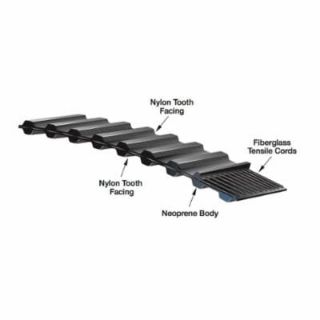

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
Quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
Neoprene body provides protection against grime, grease, oil and moisture
Belt capacity is equal to standard single-sided PowerGrip® timing belts
Twin Power® belts have teeth on both sides to provide synchronization from both driving surfaces

Specifications

Country of Origin:	US
Material:	Neoprene
Minimum Pulley Diameter:	2.83 in
Number of Teeth:	112
Overall Length:	42 in
Pitch:	3/8 in
Reinforced Material:	Fiberglass
Series:	9246
Temperature Range:	-30 to 180 deg F
Width:	1/2 in
