TP600H100 GAT

Picture of TP600H100 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Rubber
Manufacturer part number:
TP600H100
product.name:
TP600H100 GAT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
$195.22 / EA

Description

Brand Name

Gates®

Type

Heavy

Description

PowerGrip™ Twin Power™ Timing Belts are suitable for all industrial serpentine applications that require rotation reversal in some driven shafts. Twin Power belts have precision-formed elastomeric teeth on both sides to provide high-loading capacity synchronization from both driving surfaces. Due to its double and directly opposite teeth, Twin Power synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility. Gates PowerGrip Twin Power belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity.
Gates® PowerGrip® Twin Power® Timing Belt, Heavy, Series: 9246, 120 Teeth, 1/2 in Pitch, 60 in Overall Length, 1 in Width, 3.77 in Minimum Pulley Dia, -30 to 180 deg F, Neoprene, Fiberglass Reinforced Material

Application

For all industrial serpentine applications requiring rotation reversal in some driven shafts

Standards

RMA Standard

Features

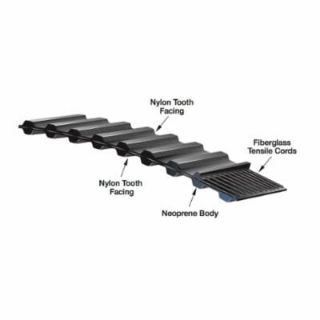

  • Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
  • Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
  • Quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
  • Neoprene body provides protection against grime, grease, oil and moisture
  • Belt capacity is equal to standard single-sided PowerGrip® timing belts
  • Twin Power® belts have teeth on both sides to provide synchronization from both driving surfaces

Specifications

Country of Origin:US
Material:Neoprene
Minimum Pulley Diameter:3.77 in
Number of Teeth:120
Overall Length:60 in
Pitch:1/2 in
Reinforced Material:Fiberglass
Series:9246
Temperature Range:-30 to 180 deg F
Width:1 in

Products Specifications

Brand Name
Gates
