TP635-5M-15 GAT

Name: TP635-5M-15 GAT
Brand: Gates Corporation
SKU: TP635-5M-15 GAT
Price: 102.52 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Corporation

Manufacturer part number:

TP635-5M-15

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$102.52 / EA

Description

Brand Name

Gates®

Type

Double Sided

Description

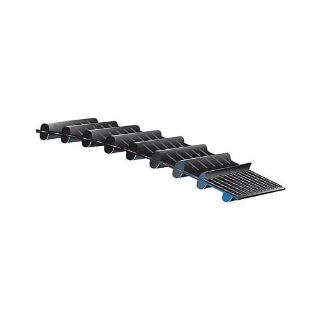

Gates® PowerGrip® HTD® Twin Power® belts are designed to perform at high speeds and in extreme temperatures, with a larger tooth profile for increased performance capacity. They have nylon facing on both tooth sides to provide equal load carrying capabilities between the sides.

Gates® PowerGrip® HTD® Twin Power® Synchronous Belt, Double Sided, Series: 9252, 127 Teeth, 5 mm Pitch, 635 mm Overall Length, 15 mm Width, -30 to 100 deg C, Curvilinear Tooth Profile, Neoprene, Fiberglass Reinforced

Application

Data Storage, Hand Power Tools, Postage Handling, Food Processors, Office Machines, Centrifuges, Money Handling, Medical Diagnostic, Sewing Machines, Ticket Dispensers, Robotics, Vending Machines and Vacuum Cleaners

Standards

RMA Standard

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Neoprene body provides protection against grime, grease, oil and moisture
Nylon tooth facing provides a durable wear surface to improve service life
Runs quieter than roller chain drives and eliminates lubrication and re-tensioning to reduce maintenance and labor
30% increase in horsepower ratings compared to traditional timing belts
Gates® Twin Power® belts have nylon facing on both tooth surfaces providing equal load carrying capabilities on either side of the belt
Belt capacity is equal to standard single sided PowerGrip® HTD® belts

Specifications

Country of Origin:	US
Material:	Neoprene
Number of Teeth:	127
Overall Length:	635 mm
Pitch:	5 mm
Reinforced Material:	Fiberglass
Series:	9252
Temperature Range:	-30 to 100 deg C
Tooth Profile:	Curvilinear
Width:	15 mm
