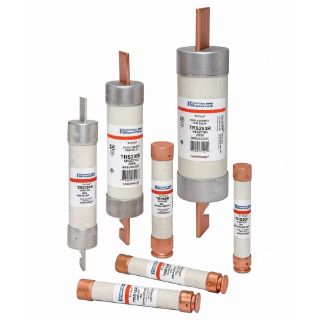

Actual Product May Vary From Image

TRS35R FER

Name: TRS35R FER
Brand: Mersen
SKU: TRS35R FER
Price: 30.86 USD
Availability: OutOfStock

Mersen Tri-Onic® TRS35R Current Limiting Low Voltage Time Delay Fuse, 35 A, 600 VAC/300 VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body

Manufacturer: Mersen

Manufacturer part number: TRS35R

Availability: Expected Leadtime 15 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$30.86

Qty:

Product Details

Brand Name

Mersen

Type

Current Limiting Low Voltage

Alternate Supplier #

Grainger - 4YZL8

Description

Tri-Onic® TRS-R current limiting time delay fuses are engineered for over current protection of motors, transformers, service entrance equipment, feeders and branch circuits. The time delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Mersen Tri-Onic® Time Delay Fuse, Current Limiting Low Voltage, Series: TRS-R, Non-Indicating, Rejection, 35 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class: RK5, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Polyester, 1-1/16 in Dia x 5-1/2 in L Body

Application

Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment Applications

Standards

UL 248-12 File No. E2137 | CSA C22.2 File No.248.12

Features

Time delay for motor start-ups and transformer inrush currents without nuisance opening
Current limiting for low peak let-thru current
Rejection style design prevents replacement errors
Easy-to-read label for quick brand recognition and replacement
Metal embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High grade silica filler ensures fast arc quenching and high current limitation
North American power fuses
Copper, tin-plated copper contact

Specifications

Amperage Rating:	35 A
Body Size:	1-1/16 in Dia x 5-1/2 in L
Body Type:	Cylindrical
Class:	RK5
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/20 kA
Material:	Polyester
Mounting Type:	Clip
Rejection/Non-Rejection:	Rejection
Series:	TRS-R
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
