Home / UCF 208 40MM IPC

UCF 208 40MM IPC

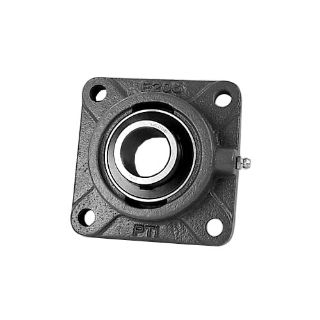

Picture of UCF 208 40MM IPC
Actual Product May Vary From Image

Product Details

Manufacturers:
IPTCI , IPTCI , IPTCI , IPTCI , IPTCI , IPTCI , IPTCI , IPTCI , IPTCI
Manufacturer part number:
UCF 208 40MM
CBT Inventory
2
Vendor Inventory
Loading...
CBT - Cincinnati
2
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$63.94 / EA

Description

Brand Name

IPTCI Bearings

Type

Standard Duty

Description

IPTCI Bearings Flange Block Bearing, Standard Duty, Series: UCF, 40 mm Bore Dia, 4 in L Bolt Center-to-Center, 4-Bolt Flange Mounting, 5-1/8 in Overall Length/Diameter, 5-1/8 in Overall Height, Set Screw Locking Device, 6375 lbf Dynamic Load

Features

  • Wide inner race bearing
  • Cast iron housing

Specifications

Bolt Center-to-Center Length:4 in
Bore Diameter:40 mm
Country of Origin:CN
Flange Mounting Type:4-Bolt
Load Capacity:6375 lbf Dynamic
Locking Device:Set Screw
Overall Height:5-1/8 in
Overall Length/Diameter:5-1/8 in
Series:UCF
