UCFL212-39HT BLT

Name: UCFL212-39HT BLT
Brand: Bearings Limited
SKU: UCFL212-39HT BLT
Price: 126.79 USD
Availability: OutOfStock

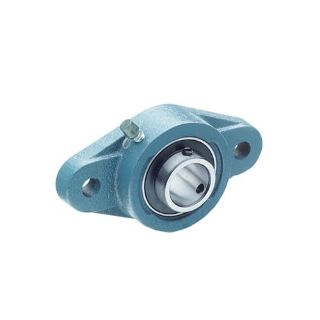

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCFL212-39HT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$126.79 / EA

Description

Brand Name

TRITAN®

Type

Standard Duty

Description

Unit feature one piece cast iron housing, solid base, wide inner ring bearing, dual heavy duty contact type seal, steel plate slinger on side for dust exclusion, full self-alignment, grease fitting for adding lubricant. setscrew unit have two setscrew 120 deg apart in the inner ring. Eccentric locking collar unit provide locking for one directional application.

TRITAN® Flange Unit, Standard Duty, Series: UCFL Series, 2-7/16 in Bore, 7-61/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 9-27/32 in Overall Length/Diameter, 5-1/2 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, 10723.39 lb Dynamic/7396.21 lb Static Load

Standards

AISI Standard

Features

Dual heavy duty slinger type contact seal
Anti-rotation device

Includes

(1) UC212-39 Wide Inner Ring Bearing, (1) FL212 Cast Iron Housing, (2) 1/4-28 UNF 1045 Steel Setscrews and (1) 1/4-28 UNF 1045 Steel Grease Fitting

Specifications

Bearing Material:	52100 Steel
Bolt Center-to-Center Length:	7-61/64 in
Bore Diameter:	2-7/16 in
Flange Mounting Type:	2-Bolt
Load Capacity:	10723.39 lb Dynamic/7396.21 lb Static
Locking Device:	Set Screw
Overall Height:	5-1/2 in
Overall Length/Diameter:	9-27/32 in
Series:	UCFL Series
