Home / UCFL215-75MM BLT

UCFL215-75MM BLT

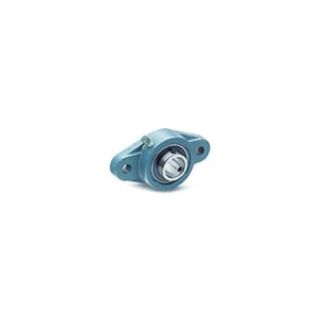

Picture of UCFL215-75MM BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
UCFL215-75MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$205.43 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

PTI Ball Bearing, Normal Duty, Series: Silver UCFL 200, 75 mm Bore, 225 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 275 mm Overall Length/Diameter, 78.5 mm Overall Depth, 162 mm Overall Height, Set Screw Locking Device, Cast Iron Bearing, 62000 N Dynamic/44220 N Static Load, 2300 rpm Maximum, 10 to 200 deg F

Standards

AISI/SAE 52100

Features

  • Dual heavy duty slinger type contact seals
  • Anti-rotation device

Specifications

Bearing Material:Cast Iron
Bolt Center-to-Center Length:225 mm
Bore Diameter:75 mm
Country of Origin:US
Flange Mounting Type:2-Bolt Flange
Load Capacity:14837.39 lb Dynamic/11128.04 lb Static
Locking Device:Set Screw
Maximum Speed:2300 rpm
Overall Depth:3.0906 in
Overall Height:162 mm
Overall Length/Diameter:10.8268 in
Series:Silver UCFL 200
Temperature Rating:10 to 200 deg F
