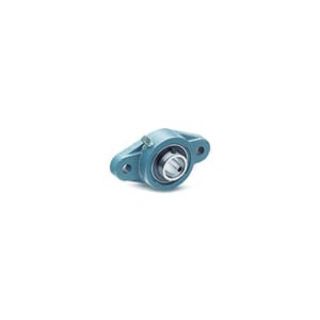

UCFL216-80MM BLT

Name: UCFL216-80MM BLT
Brand: Bearings Limited
SKU: UCFL216-80MM BLT
Price: 277.10 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCFL216-80MM

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$277.10 / EA

Description

Brand Name

TRITAN®

Type

Standard-Duty

Description

Units feature one-piece cast iron housing, solid base, wide inner ring bearing, dual heavy duty contact-type seals, steel plate slingers on sides for dust exclusion, full self alignment, grease fitting for adding lubricant. Set screw units have two set screws 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications.

TRITAN® Ball Bearing Unit, Standard-Duty, Series: UCFL216, 80 mm Bore, 9.1732 in Bolt Center-to-Center Length, 2-Bolt Oval Flange Mounting, 11.4173 in Overall Length/Diameter, 3.2795 in Overall Depth, 7.0866 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 16073.84 lb Dynamic/12184.64 lb Static Load

Standards

AISI/SAE 52100

Features

Dual heavy duty slinger type contact seals
Anti-rotation device

Includes

UC216-80MM Steel Insert

Specifications

Bearing Material:	Cast Iron
Bolt Center-to-Center Length:	9.1732 in
Bore Diameter:	80 mm
Flange Mounting Type:	2-Bolt Oval
Load Capacity:	16073.84 lb Dynamic/12184.64 lb Static
Locking Device:	Set Screw
Overall Depth:	3.2795 in
Overall Height:	7.0866 in
Overall Length/Diameter:	11.4173 in
Series:	UCFL216
