UCFL218-90MM BLT

Name: UCFL218-90MM BLT
Brand: Bearings Limited
SKU: UCFL218-90MM BLT
Price: 421.16 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCFL218-90MM

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$421.16 / EA

Description

Brand Name

TRITAN®

Type

Standard-Duty

Description

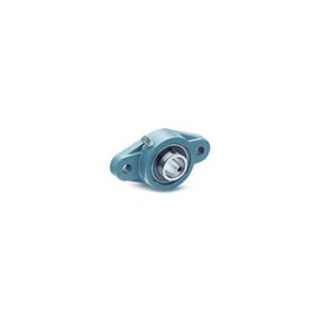

Units feature one-piece cast iron housing, solid base, wide inner ring bearing, dual heavy duty contact-type seals, steel plate slingers on sides for dust exclusion, full self alignment, grease fitting for adding lubricant. Set screw units have two set screws 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications.

TRITAN® Ball Bearing Unit, Standard-Duty, Series: UCFL218, 90 mm Bore, 10.4331 in Bolt Center-to-Center Length, 2-Bolt Oval Flange Mounting, 12.5984 in Overall Length/Diameter, 3.7913 in Overall Depth, 8.0709 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 21581.66 lb Dynamic/16073.84 lb Static Load

Standards

AISI/SAE 52100

Features

Dual heavy duty slinger type contact seals
Anti-rotation device

Includes

UC218-90MM Steel Insert

Specifications

Bearing Material:	Cast Iron
Bolt Center-to-Center Length:	10.4331 in
Bore Diameter:	90 mm
Flange Mounting Type:	2-Bolt Oval
Load Capacity:	21581.66 lb Dynamic/16073.84 lb Static
Locking Device:	Set Screw
Overall Depth:	3.7913 in
Overall Height:	8.0709 in
Overall Length/Diameter:	12.5984 in
Series:	UCFL218
