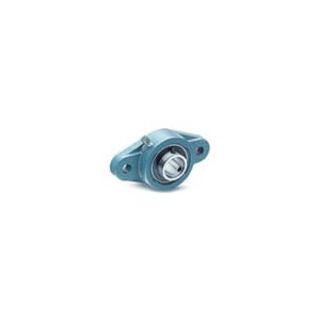

UCFLX10-30 BLT

Name: UCFLX10-30 BLT
Brand: Bearings Limited
SKU: UCFLX10-30 BLT
Price: 89.30 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCFLX10-30

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$89.30 / EA

Description

Brand Name

TRITAN®

Type

Medium Duty

Description

Units feature one-piece cast iron housing, solid base, wide inner ring bearing, dual heavy duty contact-type seals, steel plate slingers on sides for dust exclusion, full self alignment, grease fitting for adding lubricant. Set screw units have two set screws 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications.

TRITAN® Ball Bearing Unit, Medium Duty, Series: UCFLX10, 1-7/8 in Bore, 7.2441 in Bolt Center-to-Center Length, 2-Bolt Oval Flange Mounting, 8.5039 in Overall Length/Diameter, 2.3386 in Overall Depth, 5.1181 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 9779.19 lb Dynamic/6564.42 lb Static Load

Standards

AISI/SAE 52100

Features

Dual heavy duty slinger type contact seals
Anti-rotation device

Includes

UCX10-30 Steel Insert

Specifications

Bearing Material:	Cast Iron
Bolt Center-to-Center Length:	7.2441 in
Bore Diameter:	1-7/8 in
Flange Mounting Type:	2-Bolt Oval
Load Capacity:	9779.19 lb Dynamic/6564.42 lb Static
Locking Device:	Set Screw
Overall Depth:	2.3386 in
Overall Height:	5.1181 in
Overall Length/Diameter:	8.5039 in
Series:	UCFLX10
