UCFSS205-16SS/V BLT

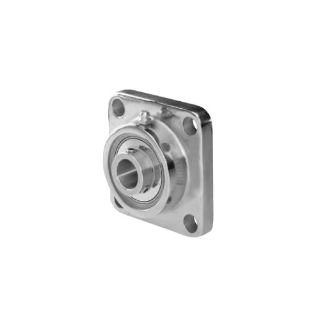

Picture of UCFSS205-16SS/V BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
UCFSS205-16SS/V
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$86.00 / EA

Description

Brand Name

TRITAN®

Type

Corrosion-Resistant Standard Duty

Description

Corrosion-resistant unit for application requiring clean operating environment and frequent washdown such as food processing, packaging, pharmaceutical production and handling. Feature high quality 304 stainless steel housing and wide inner ring bearing, solid base and smooth polished surface. Lubricated with food grade grease.
TRITAN® Flange Unit, Corrosion-Resistant Standard Duty, Series: UCFSS Series, 1 in Bore, 2-3/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 3-3/4 in Overall Height, Set Screw Locking Device, Stainless Steel Bearing, 2518 lb Dynamic/1765 lb Static Load

Application

For requiring clean operating environment and frequent washdown such as food processing, packaging, pharmaceutical production and handling

Standards

AISI Standard

Features

  • Four bolt, corrosion-resistant unit for clean operating environment and frequent washdown
  • High quality 304 stainless steel housing
  • Solid base, smooth polished surface
  • Lubricated with food grade grease
  • Cap ready

Includes

(1) SSUC205-16 Wide Inner Ring Bearing, (1) FSS205 Stainless Steel Housing, (2) 1/4-28 UNF 1045 Steel Setscrews and (1) 1/4-28 UNF 1045 Steel Grease Fitting

Specifications

Bearing Material:Stainless Steel
Bolt Center-to-Center Length:2-3/4 in
Bore Diameter:1 in
Flange Mounting Type:4-Bolt
Load Capacity:2518 lb Dynamic/1765 lb Static
Locking Device:Set Screw
Overall Height:3-3/4 in
Overall Length/Diameter:3-3/4 in
Series:UCFSS Series
