UCP216-80MM BLT

Name: UCP216-80MM BLT
Brand: Bearings Limited
SKU: UCP216-80MM BLT
Price: 265.70 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCP216-80MM

Product Name:

UCP216-80MM BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$265.70 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

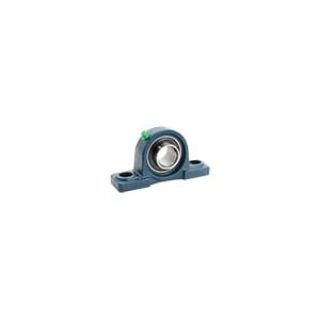

PTI Pillow Block Ball Bearing Unit, Normal Duty, Series: UCP200, 80 mm Bore, 232 mm Bolt Center-to-Center Length, 88.9 mm Base to Bore Centerline, 292 mm Overall Length, 78 mm Overall Width, 175 mm Overall Height, 78 mm Base Width, Set Screw Locking Device, Lip Seal Seal, Non-Expansion (Fixed) Expansion, 70400 N Dynamic/54000 N Static Load, 10 to 200 deg F, 2150 rpm Maximum, Cast Iron

Standards

AISI/SAE 52100

Features

High center height
Relubricatable
Wide inner ring
Steel flinger
30 mm T base
292 mm L base
88.3 mm W inside ring

Specifications

Base to Bore Centerline:	3-1/2 in
Base Width:	3.0709 in
Bolt Center-to-Center Length:	232 mm
Bore Diameter:	80 mm
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Load Capacity:	16073.84 lb Dynamic/12184.64 lb Static
Locking Device:	Set Screw
Material:	Cast Iron
Maximum Speed:	2150 rpm
Overall Height:	175 mm
Overall Length:	11.4961 in
Overall Width:	78 mm
Seal Type:	Lip Seal
Series:	UCP200
Temperature Rating:	10 to 200 deg F
