UCP217-85MM BLT

Name: UCP217-85MM BLT
Brand: Bearings Limited
SKU: UCP217-85MM BLT
Price: 324.50 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCP217-85MM

Product Name:

UCP217-85MM BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$324.50 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

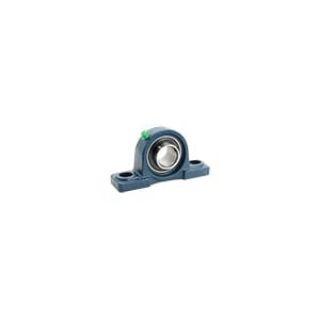

PTI Pillow Block Ball Bearing Unit, Normal Duty, Series: UCP200, 85 mm Bore, 247 mm Bolt Center-to-Center Length, 95.2 mm Base to Bore Centerline, 310 mm Overall Length, 83 mm Overall Width, 187 mm Overall Height, 83 mm Base Width, Set Screw Locking Device, Lip Seal Seal, Non-Expansion (Fixed) Expansion, 83160 N Dynamic/63360 N Static Load, 10 to 200 deg F, 2000 rpm Maximum, Cast Iron

Standards

AISI/SAE 52100

Features

High center height
Relubricatable
Wide inner ring
Steel flinger
32 mm T base
310 mm L base
93.1 mm W inside ring

Specifications

Base to Bore Centerline:	3-3/4 in
Base Width:	3.2677 in
Bolt Center-to-Center Length:	247 mm
Bore Diameter:	85 mm
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Load Capacity:	18771.55 lb Dynamic/14387.77 lb Static
Locking Device:	Set Screw
Material:	Cast Iron
Maximum Speed:	2000 rpm
Overall Height:	187 mm
Overall Length:	12.2047 in
Overall Width:	83 mm
Seal Type:	Lip Seal
Series:	UCP200
Temperature Rating:	10 to 200 deg F
