UCP218-90MM BLT

Name: UCP218-90MM BLT
Brand: Bearings Limited
SKU: UCP218-90MM BLT
Price: 398.37 USD
Availability: OutOfStock

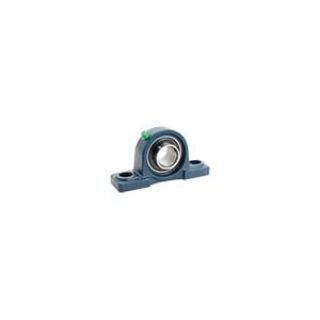

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCP218-90MM

Product Name:

UCP218-90MM BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$398.37 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

PTI Pillow Block Ball Bearing Unit, Normal Duty, Series: UCP200, 90 mm Bore, 262 mm Bolt Center-to-Center Length, 101.6 mm Base to Bore Centerline, 327 mm Overall Length, 88 mm Overall Width, 200 mm Overall Height, 88 mm Base Width, Set Screw Locking Device, Lip Seal Seal, Non-Expansion (Fixed) Expansion, 100760 N Dynamic/77440 N Static Load, 10 to 200 deg F, 1900 rpm Maximum, Cast Iron

Standards

AISI/SAE 52100

Features

High center height
Relubricatable
Wide inner ring
Steel flinger
33 mm T base
327 mm L base
100.3 mm W inside ring

Specifications

Base to Bore Centerline:	101.6 mm
Base Width:	3.4646 in
Bolt Center-to-Center Length:	10.315 in
Bore Diameter:	90 mm
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Load Capacity:	100760 N Dynamic/77440 N Static
Locking Device:	Set Screw
Material:	Cast Iron
Maximum Speed:	1900 rpm
Overall Height:	200 mm
Overall Length:	12.874 in
Overall Width:	88 mm
Seal Type:	Lip Seal
Series:	UCP200
Temperature Rating:	10 to 200 deg F
