UCPAPL207-20ASS BLT

Name: UCPAPL207-20ASS BLT
Brand: Bearings Limited
SKU: UCPAPL207-20ASS BLT
Price: 149.57 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCPAPL207-20ASS

Product Name:

UCPAPL207-20ASS BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$149.57 / EA

Description

Brand Name

TRITAN®

Type

Corrosion-Resistant Standard Duty Tapped Base Washdown

Description

Corrosion-resistant unit for application requiring clean operating environment. Glass reinforced PBT housing offer favorable mechanical, thermal and electrical properties. Feature solid base, stainless steel wide inner ring bearing and bolt grommet. Lubricated with food grade grease. Black or green PBT housing also available.

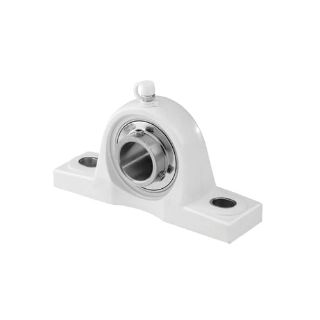

TRITAN® Pillow Block Unit, Corrosion-Resistant Standard Duty Tapped Base Washdown, Series: UCPAPL A Series, 1-1/4 in Bore, 3-1/4 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 4-3/8 in Overall Length, 3-3/4 in Overall Height, 1-7/8 in Base Width, Set Screw Locking Device, Dual Contact Seal, Reinforced PBT

Application

For requiring clean operating environment and frequent washdown such as food processing, packaging, pharmaceutical production and handling

Features

Reinforced PBT solid base housing
Stainless steel wide inner ring bearing
Lubricated with food grade grease
Dual seal (type B)

Includes

SSUC207-20 Stainless Steel Bearing Insert

Specifications

Base to Bore Centerline:	1-7/8 in
Base Width:	1-7/8 in
Bolt Center-to-Center Length:	3-1/4 in
Bore Diameter:	1-1/4 in
Locking Device:	Set Screw
Material:	Reinforced PBT
Overall Height:	3-3/4 in
Overall Length:	4-3/8 in
Seal Type:	Dual Contact
Series:	UCPAPL A Series
