UCPSS205-25MMSS BLT

Name: UCPSS205-25MMSS BLT
Brand: Bearings Limited
SKU: UCPSS205-25MMSS BLT
Price: 144.80 USD
Availability: OutOfStock

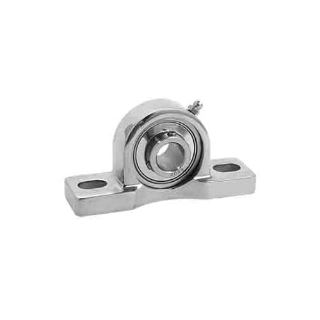

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCPSS205-25MMSS

Product Name:

UCPSS205-25MMSS BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$144.80 / EA

Description

Brand Name

TRITAN®

Type

Corrosion-Resistant Standard Duty Solid Base Washdown

Description

Corrosion-resistant unit for application requiring clean operating environment and frequent washdown such as food processing, packaging, pharmaceutical production and handling. Feature high quality 304 stainless steel housing and wide inner ring bearing, solid base and smooth polished surface. Lubricated with food grade grease.

TRITAN® Pillow Block Unit, Corrosion-Resistant Standard Duty Solid Base Washdown, Series: UCPSS Series, 25 mm Bore, 4-1/8 in Bolt Center-to-Center Length, 1-7/16 in Base to Bore Centerline, 5-1/2 in Overall Length, 2-3/4 in Overall Height, 1-3/16 in Base Width, Set Screw Locking Device, Dual Contact Seal, 2518 lb Dynamic/1765 lb Static Load, Stainless Steel

Application

For requiring clean operating environment and frequent washdown such as food processing, packaging, pharmaceutical production and handling

Standards

AISI Standard

Features

High quality 304 stainless steel housing
Wide inner ring bearing
Solid base, smooth polished surface
Lubricated with food grade grease
Cap ready

Includes

(1) SSUC205-25MM Stainless Steel Bearing Insert, (2) 1/4-28 UNF 1045 Steel Setscrews and (1) 1/4-28 UNF 1045 Steel Grease Fitting

Specifications

Base to Bore Centerline:	1-7/16 in
Base Width:	1-3/16 in
Bolt Center-to-Center Length:	4-1/8 in
Bore Diameter:	25 mm
Load Capacity:	2518 lb Dynamic/1765 lb Static
Locking Device:	Set Screw
Material:	Stainless Steel
Overall Height:	2-3/4 in
Overall Length:	5-1/2 in
Seal Type:	Dual Contact
Series:	UCPSS Series
