UCPX07-20 BLT

Name: UCPX07-20 BLT
Brand: Bearings Limited
SKU: UCPX07-20 BLT
Price: 58.80 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

UCPX07-20

Product Name:

UCPX07-20 BLT

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$58.80 / EA

Description

Brand Name

PTI

Type

Medium Duty

Description

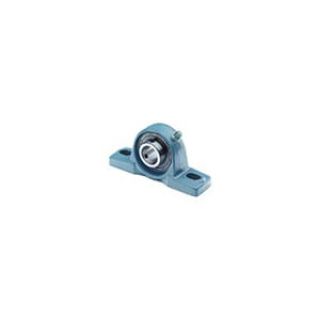

PTI Pillow Block Ball Bearing Unit, Medium Duty, Series: PX Series, 1-1/4 in Bore, 5.67 in Bolt Center-to-Center Length, 2.13 in Base to Bore Centerline, 7.99 in Overall Length, 2.24 in Overall Width, 4.13 in Overall Height, 2.24 in Base Width, Set Screw Locking Device, Lip Seal Seal, Non-Expansion (Fixed) Expansion, 6575 lb Dynamic/4010 lb static Load, 10 to 200 deg F, 4000 rpm Maximum, Cast Iron

Standards

AISI/SAE 52100

Features

One-piece cast iron housing and solid base
Wide inner ring bearing
Dual heavy duty slinger type contact seals
Grease fitting for adding lubricant

Specifications

Base to Bore Centerline:	2-1/8 in
Base Width:	2.24 in
Bolt Center-to-Center Length:	5.6693 in
Bore Diameter:	1-1/4 in
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Load Capacity:	6575 lb Dynamic/4010 lb static
Locking Device:	Set Screw
Material:	Cast Iron
Maximum Speed:	4000 rpm
Overall Height:	4.13 in
Overall Length:	7.99 in
Overall Width:	2.24 in
Seal Type:	Lip Seal
Series:	PX Series
Temperature Rating:	10 to 200 deg F
