UTP28SP2RD PAN

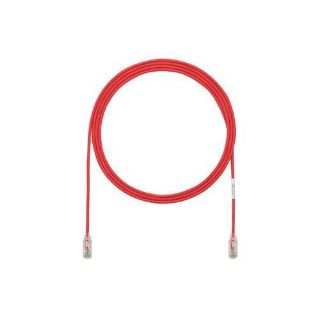

Picture of UTP28SP2RD PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
UTP28SP2RD
CBT Inventory
1
Vendor Inventory
Loading...
CBT - CINCINNATI
1
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$18.10 / EA

Description

Brand Name

Panduit®

Type

Class E Small Diameter

Description

Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Panduit® PanNet® TX6-28™ Patch Cord, Class E Small Diameter, Series: UTP28SP, Category: Cat 6, 28 AWG Conductor, U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 2 ft Cord, Polyvinyl Chloride, Red, 167 deg F

Application

1000BASE-T Gigabit Ethernet, 100BASE-T Fast Ethernet, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Digital Video and Broadband/Baseband Analog Video, Voice/Data Systems, Voice over Internet Protocol (VoIP)

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ANSI/TIA-568-C.2 | ANSI/TIA-1096-A | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt Type 3 and Type 4 PoE Compliant | UL 1863 | IEC 60603-7 | cULus Recognized | CAN/CSA C22.2 | UL File No. E129886 | CE Marked | CM/LSZH Dual-Rated Flammability Rating

Features

  • 100% performance tested for wire map, next and return loss
  • Centred de-embedded plug
  • Integral pair manager optimizes performance and consistency by reducing untwist at plug
  • Patented tangle-free latch prevents snags and provides easy release, saving time and tangle providing reliability on frequent moves, adds and changes
  • Smaller diameter, flexible cable design
  • Robust construction - plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
  • Identification label provides identification of performance level, length and quality control number for traceability
  • 28 AWG UTP patch cord with TX6™ modular plugs on each end

Includes

TX6â„¢ Modular Plugs on Each End

Specifications

Category Type:Cat 6
Color:Red
Conductor Size:28 AWG
Conductor Type:Stranded Copper
Connector Type:RJ45 Modular Plug Boot
Cord Length:2 ft
Jacket Color:Red
Jacket Material:Polyvinyl Chloride
Series:UTP28SP
Temperature Rating:14 to 167 deg F
