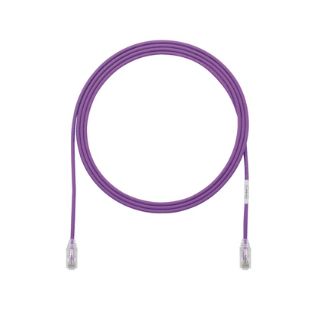

Picture of UTP28SP7VL PAN
Actual Product May Vary From Image

UTP28SP7VL PAN

Panduit® PanNet® TX6-28™ UTP28SP7VL Class E Small Diameter Patch Cord, Cat 6, 28 AWG U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 7 ft L Cord, Violet
Manufacturer: Panduit
Manufacturer part number: UTP28SP7VL
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
10 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$20.04

Product Details

Brand Name

Panduit®

Type

Class E Small Diameter

Description

Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Panduit® PanNet® TX6-28™ Patch Cord, Class E Small Diameter, Series: UTP28SP, Category: Cat 6, 28 AWG Conductor, U/UTP Copper Stranded Conductor, RJ45 Modular Plug Boot Connector, 7 ft Cord, Polyvinyl Chloride, Violet, 167 deg F

Application

1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Digital Video and Broadband/Baseband Analog Video, Voice/Data Systems and Voice over Internet Protocol (VoIP)

Standards

ANSI/TIA 1096-A | ANSI/TIA 568-C.2 | ARRA Compliant | Buy American Act Compliant | CAN/CSA C22.2 | CE Marked | CM/LSZH Dual Rated Flammability Rated | cULus Listed | IEC 60603-7 | IEEE 802.3af/802.3at | IEEE 802.3bt Type 3 and Type 4 for PoE Compliant | RoHS Compliant | UL File No. 1863/E129886

Features

  • 100% performance tested for wire map, next and return loss
  • Centred de-embedded plug
  • Integral pair manager optimizes performance and consistency by reducing untwist at plug
  • Patented tangle-free latch prevents snags and provides easy release, saving time and tangle providing reliability on frequent moves, adds and changes
  • Smaller diameter, flexible cable design
  • Robust construction - plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
  • Identification label provides identification of performance level, length and quality control number for traceability
  • 28 AWG UTP patch cord with TX6™ modular plugs on each end

Includes

TX6â„¢ Modular Plugs on Each End

Specifications

Category Type:Cat 6
Color:Violet
Conductor Size:28 AWG
Conductor Type:Stranded Copper
Connector Type:RJ45 Modular Plug Boot
Cord Length:7 ft
Jacket Color:Violet
Jacket Material:Polyvinyl Chloride
Series:UTP28SP
Temperature Rating:14 to 167 deg F
