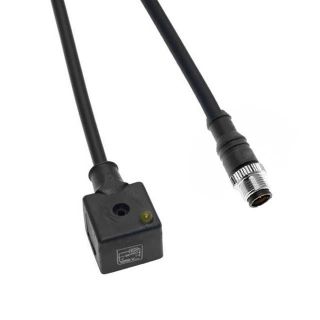

VAC-520-3501 MEN

Product Details

Manufacturer:
Manufacturer part number:
VAC-520-3501
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Type

Cables

Description

The DIN 43650 Form A (18mm) solenoid valve connectors from Mencom are designed to provide easy and reliable quick disconnect options for many valve applications. The universal design allows for worry free installation whether a new application or maintenance and repair. These quality solenoid valve connectors are available in field wireable models, over molded versions with different cable lengths, and with quick disconnect receptacles or plugs. Mencom also offers connectors with a wide range of circuitry, including MOV??s, Flyback Diodes, and Braided Rectifiers.

Specifications

Amerage Rating:4
Cable Jacket Material:PVC
Cable Length (FT):15
Cable Length (M):5
Cable OD:0.26
Circuit:LED w/Flyback Diode
Color Code:DIN 43650
Component Type:Cordset
Coupling Thread Gender 1:Form A 18mm
Coupling Thread Gender 2:Male
Gasket Type:Molded
Gender:Male/Female Extension
Groundwire:Yes
Ingress Protection:IP65
Jacket Color:Black
Mencom Series:Form A 18mm
Mounting Thread:M12
Orientation Head 1:Female Right Angle
Orientation Head 2:Male Straight
Pin Count:3
Rated Block:Valve Connector
Shell Coupling Nut Mater:Nickel Plated Brass
Voltage Rating:50
Wire Gauge:18
