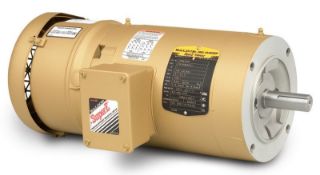

Picture of VEBM3554T BLD
Actual Product May Vary From Image

VEBM3554T BLD

1.5HP,1760RPM,3PH,60HZ,145TC,3526M,TEFC
Manufacturer: Baldor Reliance
Manufacturer part number: VEBM3554T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,139.32

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1.5HP,1760RPM,3PH,60HZ,145TC,3526M,TEFC

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:145
Frequency Rating:60 Hz
Full Load Current:2.2 A; 4.4 A; 4.5 A
Horsepower:1.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:86.50%
Phase:Three Phase
Power Factor:73
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
Customers who bought this item also bought

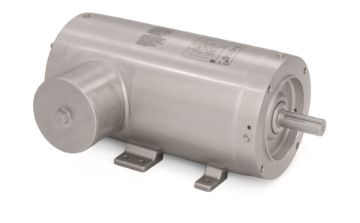

Picture of JMFSWDM3613T-E BLD
