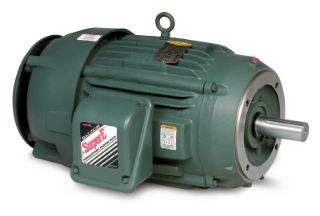

Picture of VECP3770T BLD

Actual Product May Vary From Image

VECP3770T BLD

7.5HP,1770RPM,3PH,60HZ,213TC,0735M,TEFC

Manufacturer: Baldor Reliance

Manufacturer part number: VECP3770T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,485.04

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Super E Chemical Processing

Features

7.5HP,1770RPM,3PH,60HZ,213TC,0735M,TEFC

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	213
Frequency Rating:	60 Hz
Full Load Current:	19.0 A; 9.5 A
Horsepower:	7.500 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	A
NEMA Nominal Efficincy:	91.70%
Phase:	Three Phase
Power Factor:	81
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,770 rpm
Sub Brand:	Super-E
Voltage Rating:	230 V; 460 V

Resources

Spec Sheet Warranty
