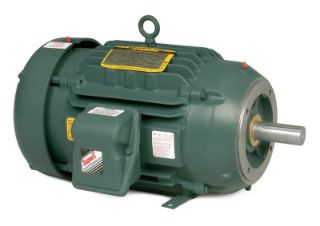

Picture of VECP82333T-4 BLD

Actual Product May Vary From Image

VECP82333T-4 BLD

15HP,1760RPM,3PH,60HZ,254TC,0944M,TEFC,F

Manufacturer: Baldor Reliance

Manufacturer part number: VECP82333T-4

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4,194.02

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Chem Process S/P 32-8 Ieee 841

Features

15HP,1765RPM,3PH,60HZ,254TC,TEFC,FOOTLE

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	254
Frequency Rating:	60 Hz
Full Load Current:	17.6 A
Horsepower:	15.000 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	92.40%
Phase:	Three Phase
Power Factor:	86
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,765 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V

Resources

Spec Sheet Warranty
