VEM3542 BLD

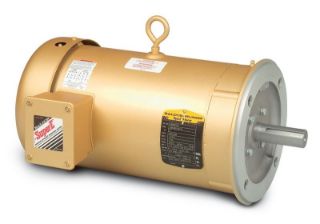

Picture of VEM3542 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VEM3542
CBT Inventory
4
Vendor Inventory
Loading...
CBT - CINCINNATI
3
CBT - SPRINGBORO
1
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
4 in stock
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$918.90 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Torque Rating: 2.22 LB-FT Full Load, 10.5 LB-FT Break Down, 6.26 LB-FT Pull-Up, 7.48 LB-FT Locked-Roter At 460 V, 60 HZ, 0.75 HP; Insulation Class: F; Horsepower: 0.75 HP; Speed Rating:

Application

General Purpose

Features

.75HP,1750RPM,3PH,60HZ,56C,3517M,TEFC,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.1 A; 2.3 A
Horsepower:0.750 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:84.00%
Phase:Three Phase
Power Factor:73
Rotation:Reversible
Service Factor:1.25
Speed Rating:1,750 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
3/4 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460
