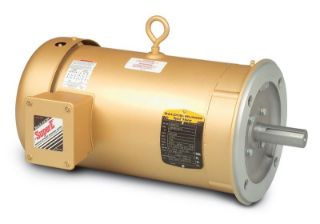

Picture of VEM3611T BLD
Actual Product May Vary From Image

VEM3611T BLD

3HP,1760RPM,3PH,60HZ,182TC,3631M,TEFC,F1
Manufacturer: Baldor Reliance
Manufacturer part number: VEM3611T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,079.65

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

3HP,1760RPM,3PH,60HZ,182TC,3631M,TEFC,F1

Application

General Purpose

Features

3HP,1760RPM,3PH,60HZ,182TC,3631M,TEFC,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:182
Frequency Rating:60 Hz
Full Load Current:4.2 A; 8.4 A; 9.0 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:75
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty
