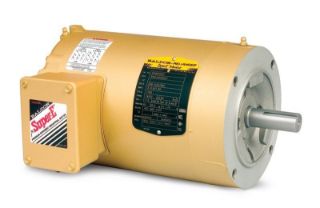

Picture of VENM3538 BLD
Actual Product May Vary From Image

VENM3538 BLD

.5HP,1765RPM,3PH,60HZ,56C,3516M,TENV,F1
Manufacturer: Baldor Reliance
Manufacturer part number: VENM3538
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$810.89

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

.5HP,1765RPM,3PH,60HZ,56C,3516M,TENV,F1

Application

General Purpose

Features

.5HP,1765RPM,3PH,60HZ,56C,3516M,TENV,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:0.9 A; 1.8 A
Horsepower:0.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:84.00%
Phase:Three Phase
Power Factor:64
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 460 V

Resources

Spec SheetWarranty
