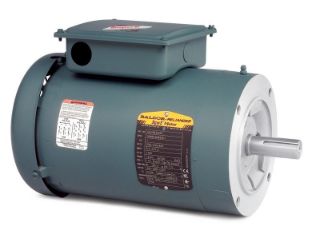

Picture of VEUHM3546T BLD

Actual Product May Vary From Image

VEUHM3546T BLD

1HP,1760RPM,3PH,60HZ,143TC,3519M,TEFC,F3

Manufacturer: Baldor Reliance

Manufacturer part number: VEUHM3546T

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$854.65

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1HP,1760RPM,3PH,60HZ,143TC,3519M,TEFC,F3

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	143
Frequency Rating:	60 Hz
Full Load Current:	1.5 A; 3.0 A; 3.1 A
Horsepower:	1.000 hp
Insulation Class:	F
Mounting:	F3
NEMA Design:	B
NEMA Nominal Efficincy:	85.50%
Phase:	Three Phase
Power Factor:	71
Rotation:	Reversible
Service Factor:	1.15
Speed Rating:	1,760 rpm
Sub Brand:	Super-E
Voltage Rating:	460 V; 230 V; 208 V

Resources

Spec Sheet Warranty
