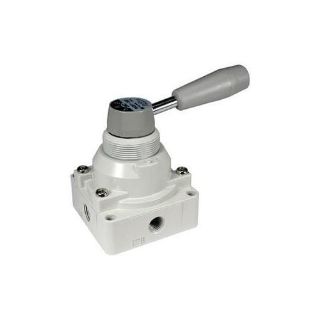

Actual Product May Vary From Image

VH200-N02 SMC

Name: VH200-N02 SMC
Brand: SMC
SKU: VH200-N02 SMC
Price: 40.65 USD
Availability: InStock

SMC® VH200-N02 VH Body Ported Hand Valve, 1/4 in Nominal, NPT End Style, 1 MPa Pressure, 1.5 Lpm Flow Rate, Die Cast Aluminum Body

Manufacturer: SMC

Manufacturer part number: VH200-N02

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
20	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$40.65

Qty:

Product Details

Brand Name

SMC®

Type

Body Ported

Description

SMC®, VH200-N02, Hand Valve, Body Ported, Series: VH, 1/4 in Nominal, NPT End Style, 1 MPa Pressure, -5 to 60 deg C, 1.5 Lpm Flow Rate, Media: Air, Rod Lever Actuator, Die Cast Aluminum Body, 92 mm H x 62 mm W x 125 mm L Dimensions

Application

Ideal for a wide range of applications requiring manual directional control

Standards

RoHS Compliant

Specifications

Actuator Type:	Rod Lever
Body Material:	Die Cast Aluminum
Country of Origin:	JP
Dimensions:	92 mm H x 62 mm W x 125 mm L
End Style:	NPT
Finish:	Die Cast Zinc
Flow Rate:	1.5 Lpm
Media:	Air
Nominal Size:	1/4 in
Pressure Rating:	1 MPa
Series:	VH
Temperature Rating:	-5 to 60 deg C
