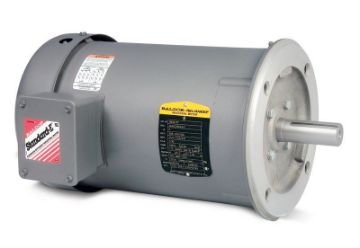

Actual Product May Vary From Image

VM3542 BLD

Name: VM3542 BLD
Brand: Baldor Reliance
SKU: VM3542 BLD
Price: 545.97 USD
Availability: InStock

.75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1

Manufacturer: Baldor Reliance

Manufacturer part number: VM3542

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$545.97

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 208-230/460 VAC; Torque Rating: 2.25 LB-FT Full Load, 10 LB-FT Break Down, 8.5 LB-FT Pull-Up, 8.8 LB-FT Locked-Roter At 460 V, 60 HZ, 0.75 HP; Horsepower: 0.75 HP; Speed Rating: 1725 RPM; Frequency R

Application

General Purpose

Features

.75HP,1725RPM,3PH,60HZ,56C,3420M,TEFC,F1

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TEFC
Frame:	56
Frequency Rating:	60 Hz
Full Load Current:	1.5 A; 3.0 A; 3.2 A
Horsepower:	0.750 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	75.50%
Phase:	Three Phase
Power Factor:	6
Rotation:	Reversible
Service Factor:	1.25
Speed Rating:	1,725 rpm
Voltage Rating:	460 V; 230 V; 208 V

Resources

Tech Drawing Spec Sheet Warranty
