VOM: TKA Series Protects Your Cable In Harshest Environments

Published: Apr 4 2016

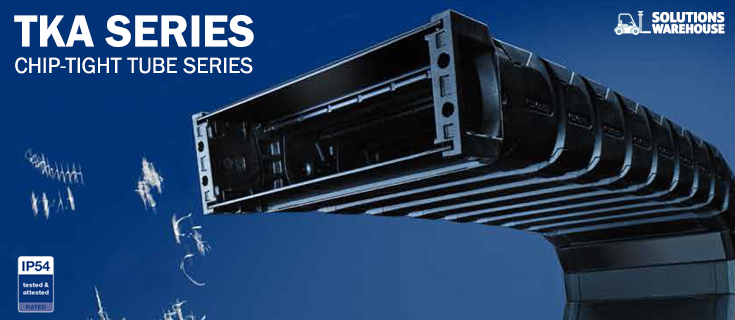

Tsubaki TKA Series The only cable carrier to offer IP54 protection rating, Tsubaki’s chip-tight tube series offers protection in the harshest environments. The TKA Series Cable Carrier reliably protects cables against dirt, chips, and circulating spray water while also preventing ingress of coolants and lubricants. With the enclosed stroke system and pin-hole joint, even large amounts of atomized oil and flying particles no longer pose a problem during cleaning. TKA Series Chart All TKA types are available in extremely heat-resistant versions; Tsubaki’s special material reliably protects the cables against negative effects, like chips, with temperatures up to 1562 degrees Fahrenheit (850 degrees Celsius). The well thought-out design of the TKA Series and its versatile performance is especially useful in applications with debris and other particles in the air. Cables inside TKA Series tube stay protected, ensuring longer wear life. The carrier’s geometric shape and triple encapsulated stroke system allow extensive unsupported lengths while remaining highly torsion-resistant. The TKA Series can be used standing or hanging, and the dividers can be placed in variable arrangements, offering a maximum scope of applications.

TKA Series Features

  • Excellent cable protection, even at the brackets
  • Chips and dirt-resistant due to smooth surfaces
  • Increased self-supporting length
  • High torsional rigidity
  • Easy assembly and cable installation
  • Easy-to-open cover with simultaneously high retention force on the chain link during operation
  • Measurement scale for easy alignment of the dividers along the cover
  • Strain relief can be completely integrated into connecting element
  • TKA55: IP54 tested & attested
  • Good inside to outer width ratio
  • Low internal noise emissions
  • Optional: Special material with protection against chips up to 850° C
  • Numerous custom material types for custom applications available

Talk to your CBT mechanical specialist today to learn the benefits of including Tsubaki’s TKA Series in your application. Tsubaki is the CBT Vendor of the Month for April. For more information, please contact your CBT specialist.
