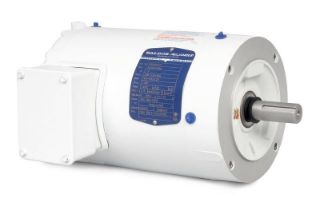

Actual Product May Vary From Image

VWDM3538 BLD

Name: VWDM3538 BLD
Brand: Baldor Reliance
SKU: VWDM3538 BLD
Price: 820.86 USD
Availability: OutOfStock

.5HP,1740RPM,3PH,60HZ,56C,3512M,TENV,F1

Manufacturer: Baldor Reliance

Manufacturer part number: VWDM3538

Availability: Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$820.86

Qty:

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Horsepower: 0.5 HP; Speed Rating: 1740 RPM; Voltage Rating: 230/460 VAC; Frequency Rating: 60 HZ; Full Load Current: 1.6/.8 AMP; Power Factor: 69; Service Factor: 1.25; Enclosure: TENV; Frame: 56C; Insulation Class:

Application

Wash Down

Features

.5HP,1740RPM,3PH,60HZ,56C,3512M,TENV,F1

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TENV
Frame:	56
Frequency Rating:	60 Hz
Full Load Current:	0.8 A; 1.6 A
Horsepower:	0.500 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	80.00%
Phase:	Three Phase
Power Factor:	69
Rotation:	Reversible
Service Factor:	1.25
Speed Rating:	1,740 rpm
Voltage Rating:	460 V; 230 V

Resources

Tech Drawing Spec Sheet Warranty
