Actual Product May Vary From Image

XPZ1000 GAT

Name: XPZ1000 GAT
Brand: Gates Rubber
SKU: XPZ1000 GAT
Price: 13.67 USD
Availability: OutOfStock

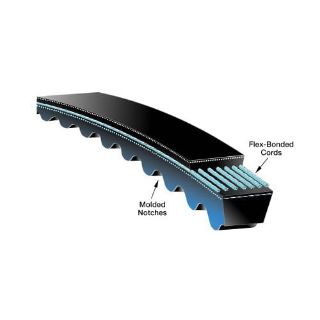

Gates® Metric-Power™ XPZ1000 Heavy Duty Molded Notch V-Belt, XPZ Section, 10 mm W Top, 1004 mm L Outside, 8 mm THK, EPDM

Manufacturer: Gates Rubber

Manufacturer part number: XPZ1000

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$13.67

Qty:

Product Details

Brand Name

Gates®

Type

Heavy Duty Molded Notch

Description

Manufactured in the Americas, these belts are made to Gates® high quality global production standards. Metric-Power™ belts are readily available for replacement on drives that require metric cross-sections.

Gates® Metric-Power™ V-Belt, Heavy Duty Molded Notch, Series: 9426, XPZ Section, 10 mm Top Width, 1004 mm Outside Length, 8 mm Thickness, 1 Rib, -70 to 250 deg F, EPDM, Flex-Bonded Polyester Reinforced

Application

Textile Mills, Machine Tool and Food Processing Applications

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

Flex-bonded cords are chemically bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
Proprietary construction features an unbeatable combination of flex and load carrying capacity, reduced stretch and incredible cord adhesion properties
Patented ethylene material construction provides -70 to 250 deg F temperature range to resist belt cracking
Molded notches reduce thermal and bending stresses

Specifications

Country of Origin:	US
Material:	EPDM
Number of Ribs:	1
Outside Length:	1004 mm
Reinforced Material:	Flex-Bonded Polyester
Section Size:	XPZ
Series:	9426
Temperature Range:	-70 to 250 deg F
Thickness:	8 mm
Top Width:	10 mm
