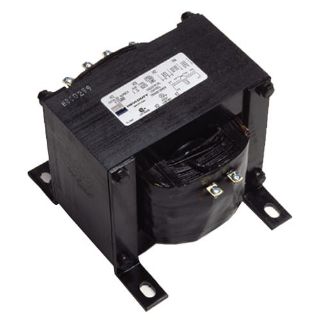

Actual Product May Vary From Image

Y1500 SHD

Name: Y1500 SHD
Brand: SolaHD (Emerson)
SKU: Y1500 SHD
Price: 769.89 USD
Availability: OutOfStock

1.5KVA 240X480-120 CU

Manufacturer: SolaHD (Emerson)

Manufacturer part number: Y1500

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$769.89

Qty:

Product Details

Brand Name

SolaHD

Type

Drive Isolation Transformers: 7.5-440 kVA, Three Phase

Description

SBE Open Style Copper Wound Industrial Control Transformers, 1500 VA, Primary Voltage: 240 x 480, Secondary Voltage: 120, 60 Hz, Primary Voltage: 230 x 460, Secondary Voltage: 115, 50/60 Hz, Primary Voltage: 220 x 440, Secondary Voltage: 110, 50/60 Hz

Application

SCR Variable Speed Drives

Standards

cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561

Features

Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC.

Specifications

Country of Origin:	US
Enclosure:	Nema 3R with weather shield
Frequency Rating:	60 Hz
Height:	17 in
KVA Rating:	1.5
Length:	10 in
Mounting:	Mtg Width 5.75, Mtg Depth 6.38, Slot Size .44 x .69IN
Number of Phases:	1
Primary Voltage:	240 X 480 Volt Primary
Secondary Voltage:	120 Volt Secondary 60 Hz
Temperature Rating:	55 DEG C Temperature Rise Under Full Load
Wattage:	1,500 W
Width:	20 in

Resources

Spec Sheet Warranty
