BSPH2A150D150LVR BSF

Name: BSPH2A150D150LVR BSF
Brand: Bussmann
SKU: BSPH2A150D150LVR BSF
Price: 462.74 USD
Availability: InStock

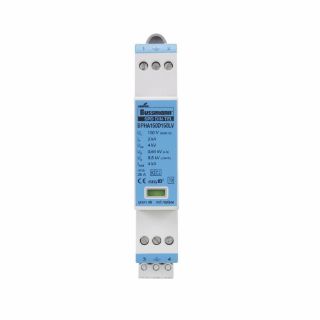

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BSPH2A150D150LVR

Product Name:

BSPH2A150D150LVR BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 49 days

Estimated dates are contingent upon manufacturer stock.

$462.74 / EA

Description

Brand Name

Bussmann

Type

Hybrid Technology Low Voltage Modular Non-SCCR

Description

The Bussmann UL type 4 24 VAC/VDC, 48 VAC/VDC, 60 VAC/VDC, 120 VAC/VDC and 230 VAC/VDC, 2-pole, modular surge arresters feature local, easyID™ visual indication and optional remote contact signaling. The unique module locking system fixes the protection module to the base part. Modules can be easily replaced without tools by simply depressing the release buttons. Integrated mechanical coding between the base and protection module ensures against installing an incorrect replacement module.

Bussmann Surge Protective Device, Hybrid Technology Low Voltage Modular Non-SCCR, Series: BSP, 150 VAC/VDC, 2 Pole, 4 Wires, 4 kA Peak Surge, 2 kA Nominal Discharge, Modes of Protection: L+N-G, 1 Outlet, <=25/100 ns Response, Green/Red Indicator, Class: GL/GG/C, Environmental Conditions: -40 to 80 deg C Operating Temperature, IP20, DIN Rail Mount, Flexible Terminal, Thermoplastic, 90 mm H x 18 mm W x 65 mm D

Application

Low voltage power and control system

Standards

CSA Certified | UL/cUL Listed | KEMA

Features

Combination of spark gap and heavy duty zinc oxide varistors provide high surge discharge capacity
Modular DIN rail design with color coding and rejection feature makes it easy to identify, install and maintain
EasyID™ visual indication
Easily coordinated with other Bussmann series DIN rail surge protection devices
Surge arrester according to UL 1449 3rd edition type 4 component assembly for type 3 applications helps meet UL 508A requirements
Proven MOV and GDT hybrid technology for reliable surge protection
"Thermodynamic control" SPD monitoring device ensures high reliability against surge events
Module locking system with module release button makes module replacement easy without tools
Vibration and shock tested according to EN 60068-2 to withstand harsh environments
Remote signaling of all modules make status monitoring easy and accurate in any monitoring scheme
The remote signaling contact versions have a floating changeover contact for use as a break or make contact for easy adoption in any monitoring application
Green (good), red (replace) indication
<=25 ns (L-N), <= 100 ns (L/N-Ground) response time

Specifications

Class:	gL
Country of Origin:	DE
Dimensions:	9 mm H x 18 mm W x 65 mm D
Electrical Ratings:	150 VAC/VDC
Enclosure Type:	IP20
Environmental Conditions:	-40 to 80 deg C Operating Temperature
Indicator Type:	Green/Red
Material:	Thermoplastic
Modes of Protection:	L+N-G
Mounting Type:	DIN Rail
Nominal Discharge Current:	2 kA
Number of Outlets:	1
Number of Poles:	2
Number of Wires:	4
Peak Surge Current:	4 kA
Response Time:	<=25/100 ns
Series:	BSP
Terminal Type:	Flexible
