ST4803PDGM FER

Name: ST4803PDGM FER
Brand: Mersen
SKU: ST4803PDGM FER
Price: 336.22 USD
Availability: InStock

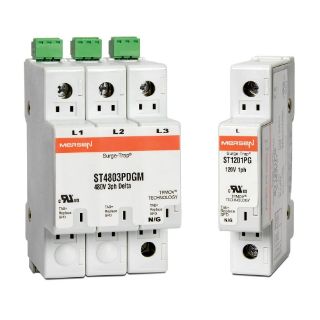

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

ST4803PDGM

CBT Inventory

Vendor Inventory

CBT - Cincinnati

CBT - Springboro

CBT - Sidney

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

$336.22 / EA

Description

Brand Name

Mersen

Type

Modular

Description

Surge-Trap® modular surge protective device (SPD) is a no fuse, fail safe surge suppressor featuring MERSEN patented TPMOV® technology inside. The modular SPD is UL 1449 3rd edition approved. It is DIN-rail mountable featuring a fail safe self-protected design, visual indicator and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap® modular SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.

Mersen Surge-Trap® Surge Protective Device, Modular, 480 VAC Electrical Rating, 50/60 Hz Frequency, 3 Pole, 4 Wires, 200 kA Short Circuit, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/L-L, <25 ns Response, Microswitch Indicator, 3 ph, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, IP20 Enclosure, DIN Rail Mounting, Box Terminal, 2.1 in W x 2.7 in D x 4.09 in H Dimensions

Application

AC/DC Distribution, Power Supplies, Industrial Automation, Telecommunications, Motor Controls and Starter Systems, Programmable Logic Controller, Power Transfer Equipment, HVAC, AC Drives, UPS Systems, Security Systems, IT/Data Centers, Medical Equipment

Standards

Features

Easy installation or retrofit
Fail safe, self-protected design
Visual indicator
IP20 finger safe design improves electrical safety
Small footprint
No additional overcurrent protection devices required
35 mm DIN rail mounting

Specifications

Country of Origin:	MX
Dimensions:	2.1 in W x 2.7 in D x 4.09 in H
Electrical Ratings:	480 VAC
Enclosure Type:	IP20
Environmental Conditions:	-40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature
Frequency Rating:	50/60 Hz
Indicator Type:	Microswitch
Modes of Protection:	L-N/L-G/L-L
Mounting Type:	DIN Rail
Nominal Discharge Current:	20 kA
Number of Poles:	3
Number of Wires:	4
Phase:	3 ph
Response Time:	<25 ns
Short Circuit Current Rating:	200 kA
Terminal Type:	Box
