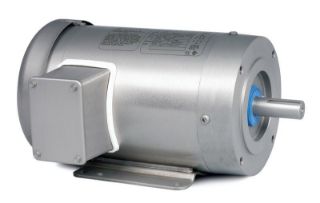

CSSWDM3542 BLD

Product Details

Manufacturer:
Manufacturer part number:
CSSWDM3542
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
$1,748.46 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down All Stainless Steel

Features

.75HP,1745RPM,3PH,60HZ,56C,3519M,TENV,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:2.2 A; 1.1 A; 2.4 A
Horsepower:0.750 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:82.50%
Phase:Three Phase
Power Factor:78
Rotation:Reversible
Service Factor:1.25
Speed Rating:1,740 rpm
Voltage Rating:460 V; 230 V; 208 V

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TENV
Frame
56C
Frequency Rating
60 Hz
Horsepower
3/4 HP
Speed Rating
1800 RPM
Type
Stainless Wash Down Motor
Voltage Rating
208-230/460
